Garmin

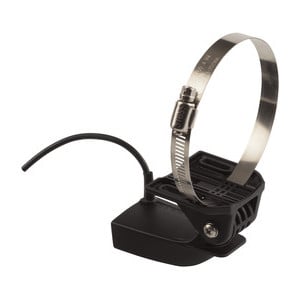

Garmin GT8HW-TM (010-12401-00)
Garmin GT8HW-TM (010-12401-00)
Regular price
$173.00
Regular price
Sale price
$173.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
OVERVIEW
GT8HW-TM transducer is perfect for shallow water fishermen who want clear bottom definition under the boat as well as crisp, clear and wide fish arches with excellent target separation. The wider beam width — up to 24 degree beam angle — provides a larger coverage area in the water.
The 8-pin transducer features high wide band CHIRP traditional sonar (145-230 kHz) and has a power rating of 250 W. It can be mounted on the transom or a trolling motor. Follow the included installation instructions carefully to avoid damaging your boat
General |
|
FREQUENCY | CHIRP High Wide (145-230 kHz) |
---|---|
POWER | 250 W |
BEAMWIDTH | 24°-16° |
MAXIMUM DEPTH | 800 ft. freshwater |
DEPTH/SPEED/TEMPERATURE | Depth and Temperature |
NUMBER OF PINS | 8-pin |
CABLE LENGTH | 20 ft. |
SUPPORTED DEADRISE/TRANSOM ANGLES | 0°-70° degree transom |
Included
- GT8HW-TM transducer
- Transom mount
- Trolling motor mount
- Mounting hardware
- Documentation
