Garmin

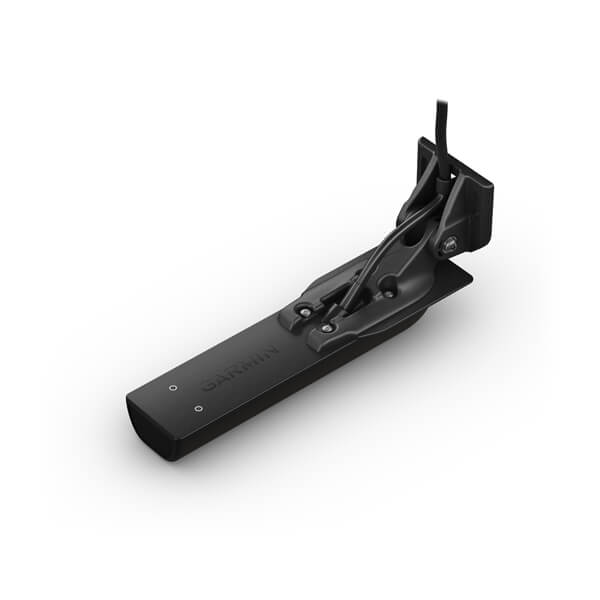

Garmin GT36UHD-TM Transducer (010-13072-00) PRE ORDER ONLY

Garmin GT36UHD-TM Transducer (010-13072-00) PRE ORDER ONLY

Regular price $629.99
Regular price Sale price $629.99
Sale Sold out
Shipping calculated at checkout.

THIS ITEM IS NOT IN STOCK ESTIMATED 1-2 WEEK SHIPPING


LESS TIME FINDING. MORE TIME FISHING.

This transducer offers ultimate versatility, featuring Ultra High-Definition ClearVü and SideVü scanning sonars for crystal-clear images of fish and structure, so you can spend more time catching fish.


See everything below and around your boat with Ultra High-Definition scanning sonar.


Multiple sonar frequencies have you covered — no matter what depth you’re fishing.


See targets and structure in bright, vivid color.


Mount this transducer your way — transom or trolling motor.

See what’s happening below the water.

ULTRA HIGH-DEFINITION CLEARVÜ SCANNING SONAR

Get brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars. It puts more power on targets via a downward-facing element.

ULTRA HIGH-DEFINITION SIDEVÜ SCANNING SONAR

See everything the first time with stunningly clear images of structure and fish off to the sides of your boat. SideVü sonar now has 20% greater range at 1,000 kHz, so you can see even farther than before.

MULTIPLE SCANNING SONAR FREQUENCIES

Use the perfect frequency for the waters you’re fishing. This transducer delivers 455 kHz, 800 kHz and 1,000 kHz for top performances at all depths.

VIVID COLOR PALETTES

High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.

MOUNTING OPTIONS

Everyone’s setup is different. That’s why we’ve included transom and trolling motor mounting hardware.

OPTIONAL CHIRP TRADITIONAL SONAR

Use a Y-cable (sold separately) to pair with a Garmin GT8HW-IH or Garmin GT15M-IH transducer (each sold separately) to add high wide CHIRP traditional sonar for remarkably clear target separation.



General

FREQUENCY ClearVü/SideVü 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100)
POWER ClearVü/SideVü 500 W
BEAMWIDTH ClearVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz; SideVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz
MAXIMUM DEPTH ClearVü: 400 ft; SideVü: 500 ft
DEPTH/SPEED/TEMPERATURE Depth and temperature
NUMBER OF PINS 12
CABLE LENGTH 25 ft
SUPPORTED DEADRISE/TRANSOM ANGLES 0°-70° degree transom

Dimensions (without mount): 218.5 mm x 51.8 mm x 27.7 mm
