RAM Mounts - Universal Marine Electronic Mount - C Size - Short Arm (RAM-111U-B)
RAM Mounts - Universal Marine Electronic Mount - C Size - Short Arm (RAM-111U-B)
Couldn't load pickup availability
OVERVIEW
The RAM-111U-B consists of a short double socket arm, 2.5" diameter round base, and 6.25" x 2" rectangle base. The round base includes a 1.5" C size rubber ball and contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base also includes a 1.5" C size rubber ball and contains a variety of pre-drilled holes that are compatible with several marine electronic devices, including fishfinders and chartplotters.
FEATURES
- Complete flat surface, drill-down mounting solution with an overall height of 5.225"

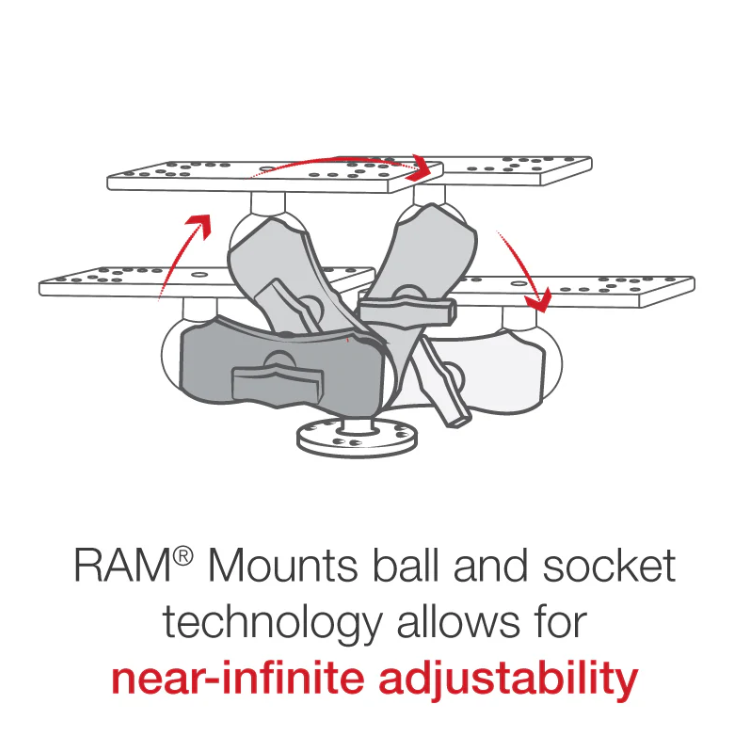

- RAMĀ Mounts ball and socket technology allows for near-infinite adjustability
- Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
- Backed by a lifetime warranty

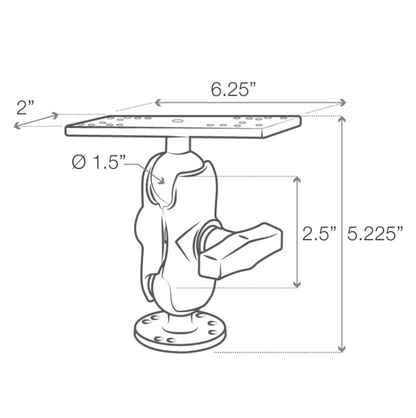

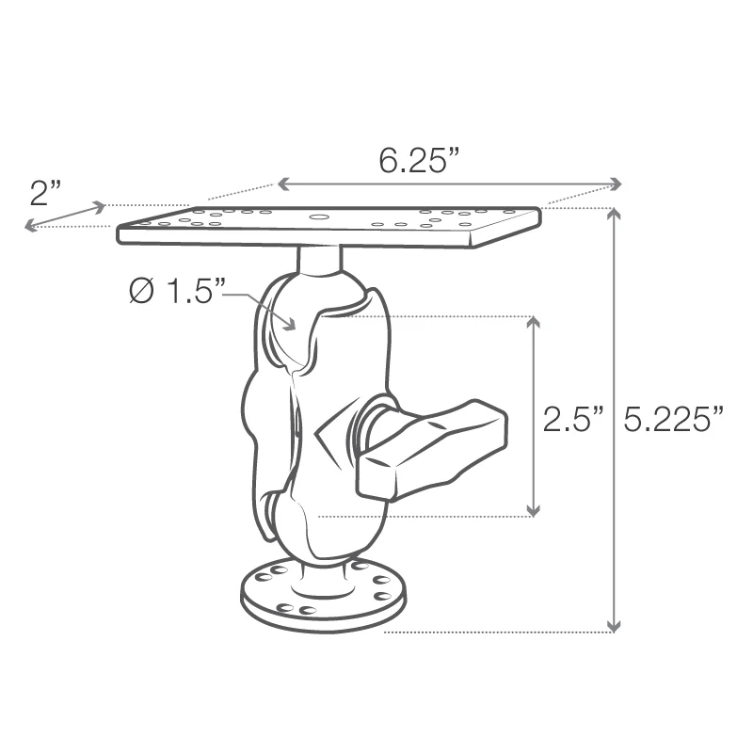

PRODUCT DIMENSIONS:
Overall Height: 5.225"
SOCKET TO SOCKET LENGTH:
2.5"
HOLE PATTERN:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
See Drawing
PLATE SIZE:
Rectangular Plate: 6.25" x 2"
Round Plate: 2.5" Diameter
BALL SIZE:
C Size (1.5")
WEIGHT CAPACITY:
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
MATERIALS:
Marine-grade aluminum
WEIGHT:
1.08 lb
ADDITIONAL INFORMATION
The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
GARMIN COMPATIBILITY
- ECHOMAP Plus 72cv
- ECHOMAP Plus 73cv
- ECHOMAP Plus 74cv
- ECHOMAP Plus 75cv
- ECHOMAP Plus 77cv
- ECHOMAP UHD2 5"
- ECHOMAP UHD2 7"
- GPSMAP 722
- GPSMAP 722xs
- GPSMAP 723
- GPSMAP 723xsv
- GPSMAP 742
- GPSMAP 742xs
- GPSMAP 743
- GPSMAP 743xsv
- Striker Plus 5cv
- Striker Vivid 5cv
- Striker Plus 7cv
- Striker Plus 7sv
- Striker Vivid 5cv
- Striker Vivid 7cv
- Striker Vivid 7sv
- Fishfinders and GPS Chartplotters
