RAM Large Marine Electronics Mount D Size Short (RAM-D-111U-C)
RAM Large Marine Electronics Mount D Size Short (RAM-D-111U-C)
Couldn't load pickup availability

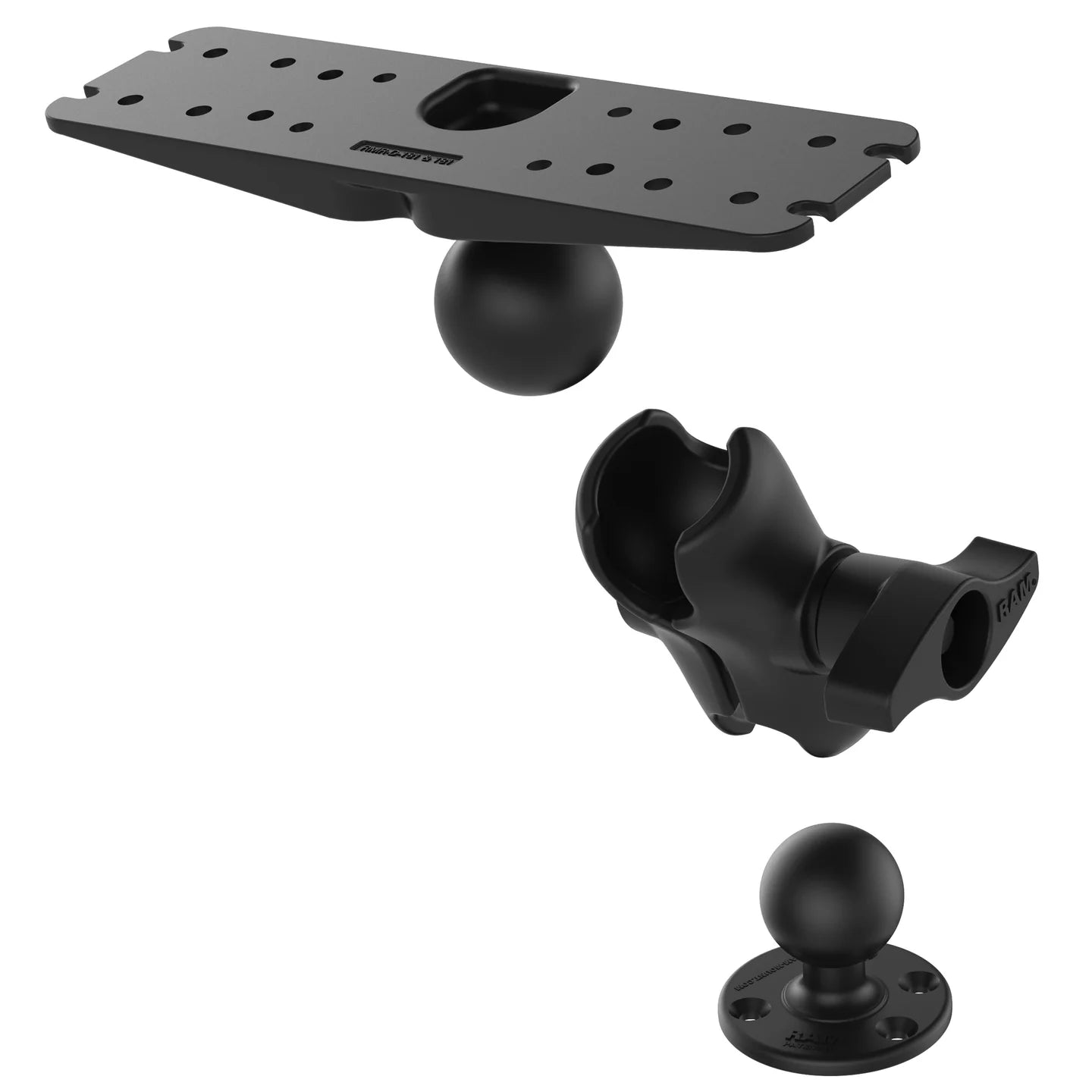

The RAM-D-111U-C consists of a short double socket arm, 3.68" diameter round base, and 11" x 3" rectangle base. The round base includes a 2.25" D size rubber ball and contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base also includes a 2.25" D size rubber ball and contains a variety of pre-drilled holes that are compatible with several large marine electronic devices, including fishfinders and chartplotters. Included are four shoulder washers that allow smaller hardware to fit properly in the large holes of this plate.
FEATURES
- Complete flat surface, drill-down mounting solution for large marine electronics with an overall height of 8.125"
- RAM® Mounts ball and socket technology allows for near-infinite adjustability
- Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
- Backed by a lifetime warranty
HARDWARE INCLUDED
(4) .312" x .187" Shoulder Washers
PRODUCT DIMENSIONS

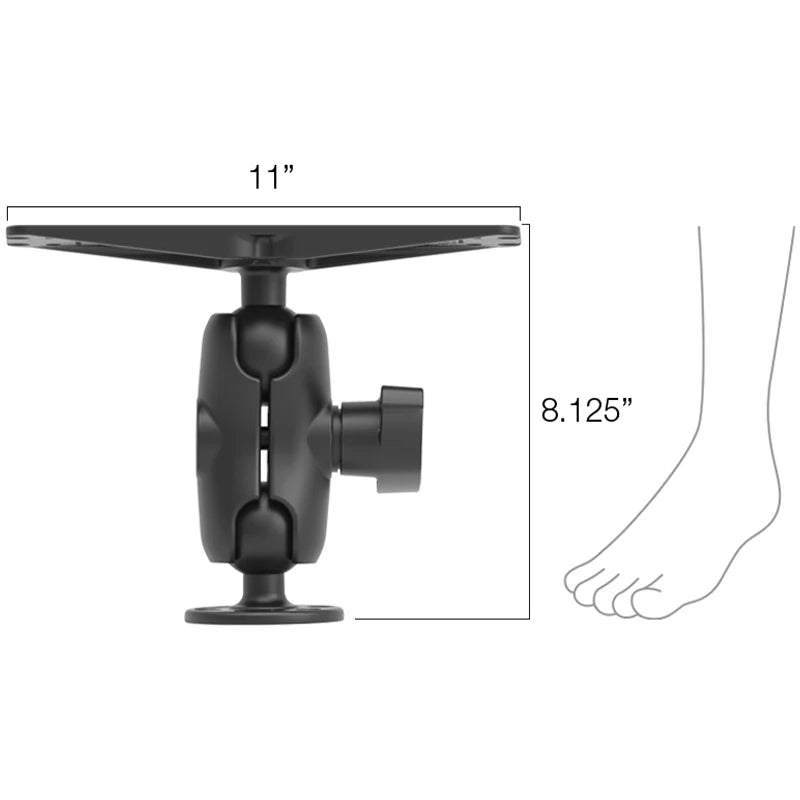

Overall Length: 8.125"
SOCKET TO SOCKET LENGTH
3.6"
HOLE PATTERN
See Drawings
PLATE SIZE
Top Plate: 3" x 11"
Bottom Plate: 3.68" Diameter
BALL SIZE
D Size (2.25")
WEIGHT CAPACITY
Standard Use: 6 lbs
Heavy-Duty Use: 5 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
3.58 lb
