RAM Mount
RAM Horizontal Swing Arm with Double Ball Mount (RAM-109H-2U)
RAM Horizontal Swing Arm with Double Ball Mount (RAM-109H-2U)
Regular price
$174.99
Regular price
Sale price
$174.99
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

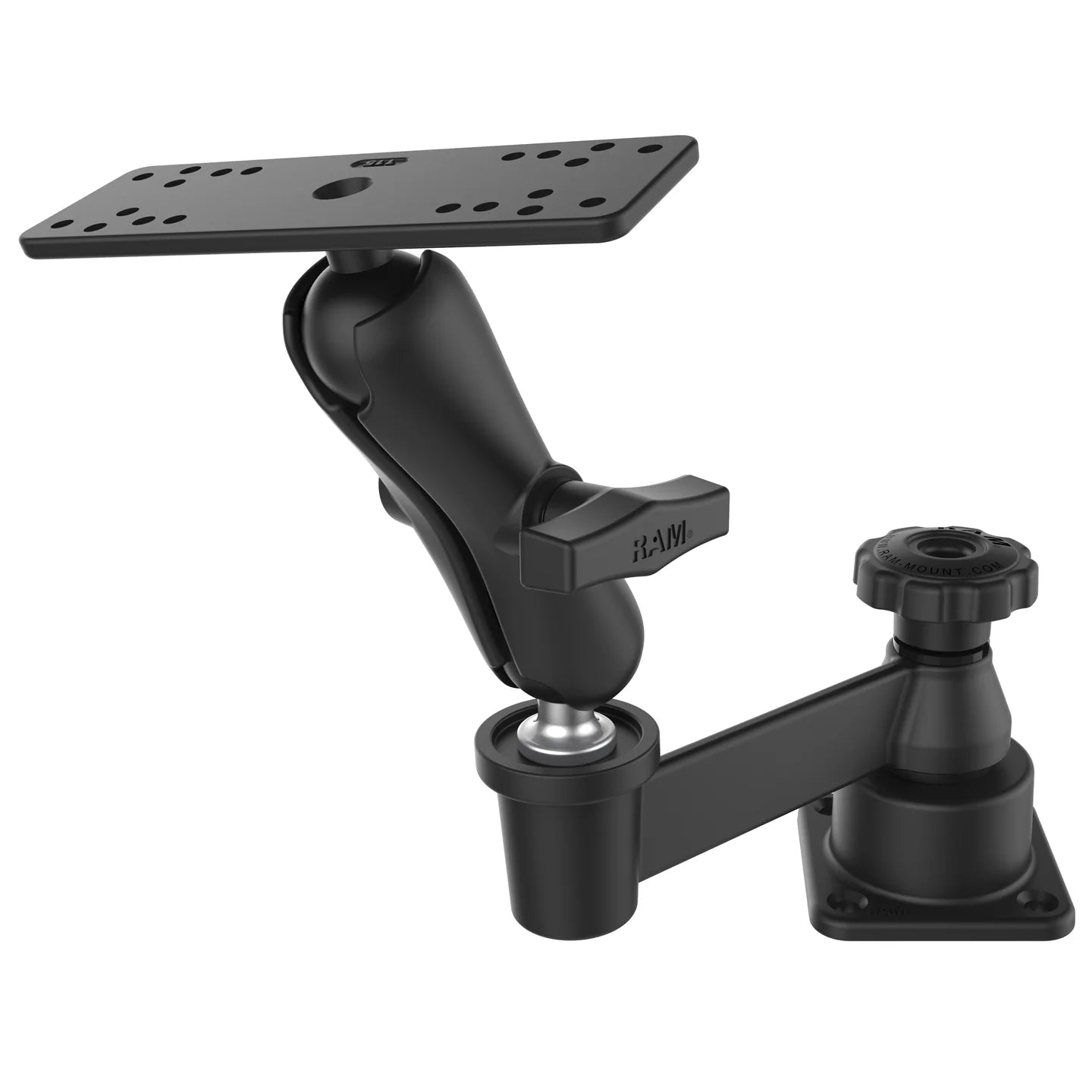

The RAM single swing and socket arm mount includes a 6" straight swing arm mounted on a horizontal surface mounting base. At the end of the mount is a rectangular 6.25" x 2" top base. The bolt pivoting point of the mount allows a 360-degree rotation.
PRODUCT DIMENSIONS
Overall, Height: 6.76"
Total Swing Arm Length: 6"
SOCKET TO SOCKET LENGTH
4.66"

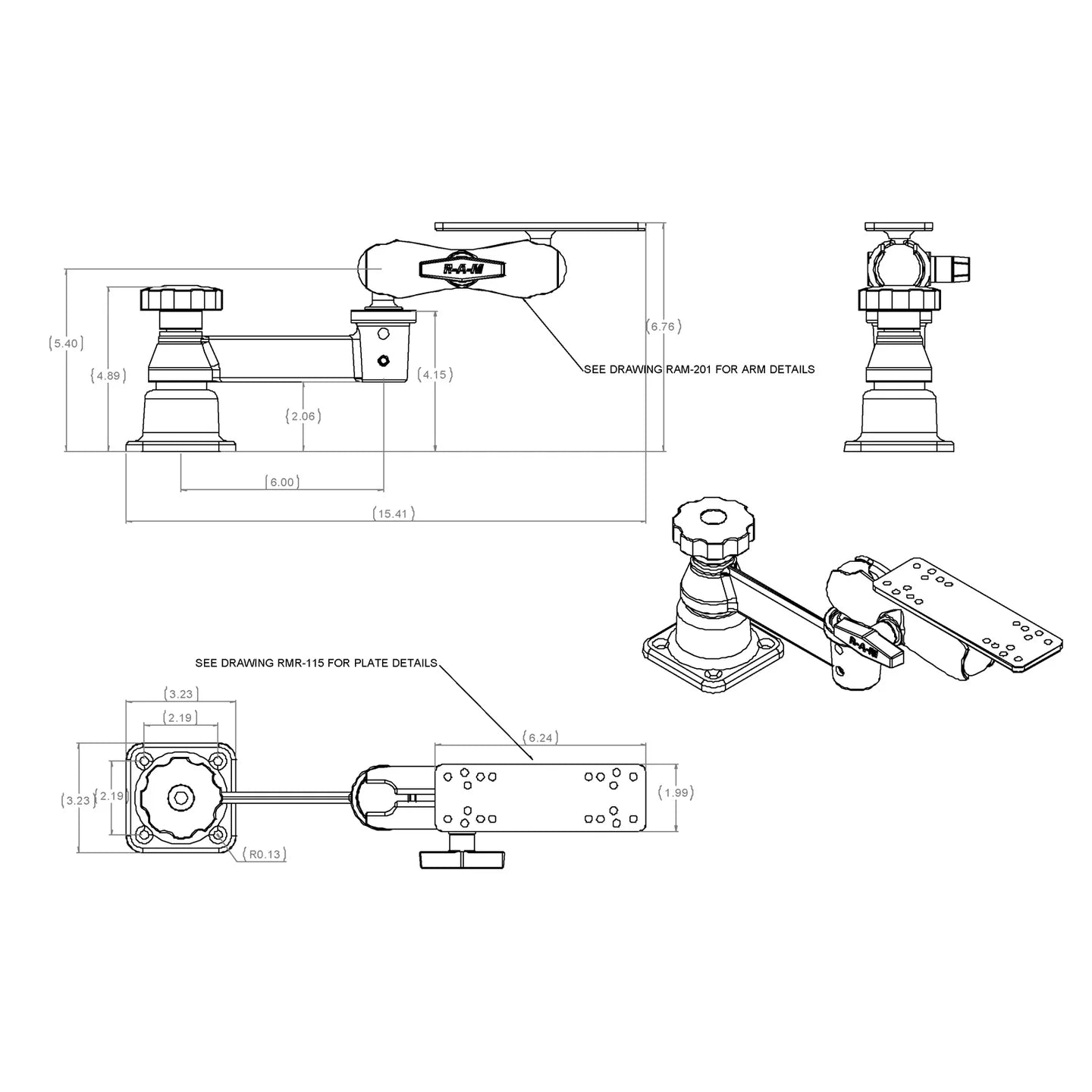

HOLE PATTERN
See Drawing
BALL SIZE
C Size (1.5")
WEIGHT CAPACITY
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
2.74 lb
ADDITIONAL INFORMATION
The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
