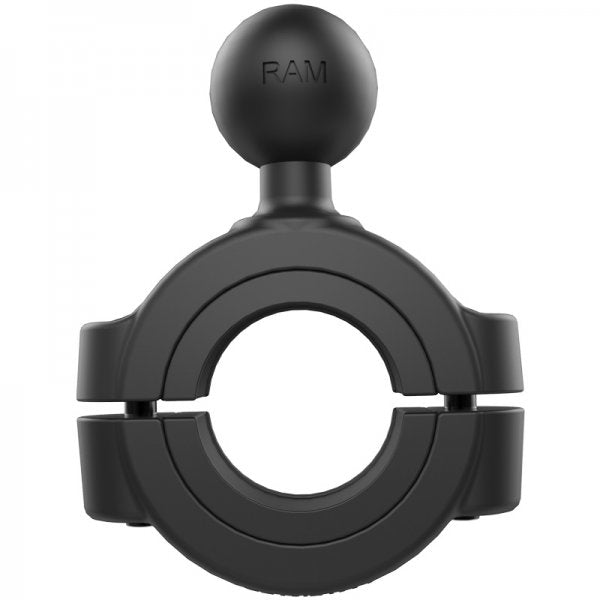

RAM® Torque™ Large Rail Base (RAM-B-408-112-15U)

• PRODUCT INFORMATION

  OVERVIEW

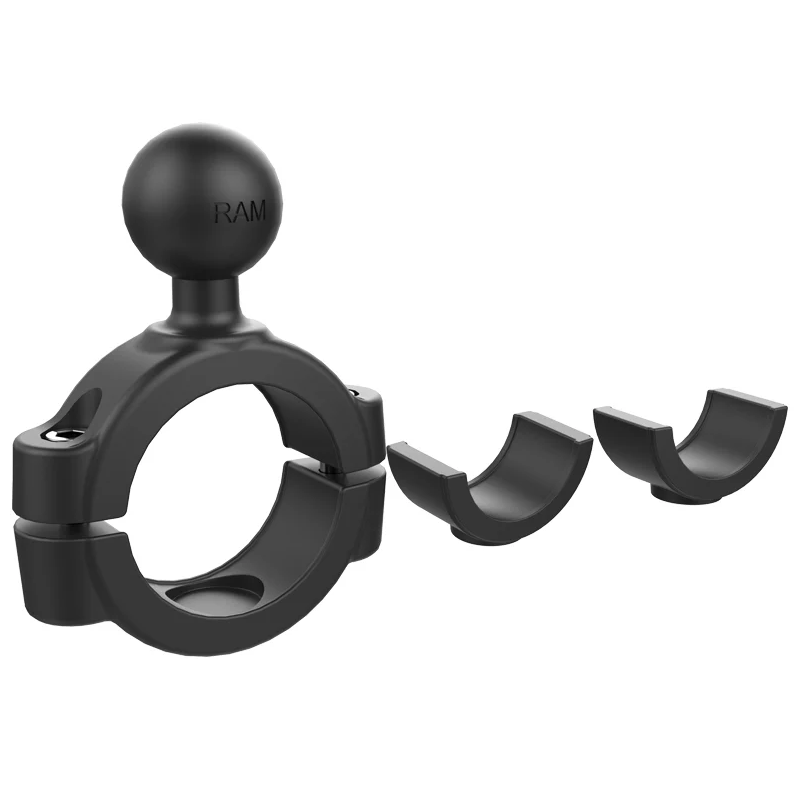

  The large version of the RAM^® Torque^™ handlebar mounting base features a 1" B size RAM^® rubber ball and is compatible with rails 1 1/8” to 1 1/2" in diameter. Sizing inserts are included to provide a tight fit while also protecting the mounting surface. The large RAM^® Torque^™ mounting base also includes nylon-insert locknuts to prevent loosening in high vibration environments.

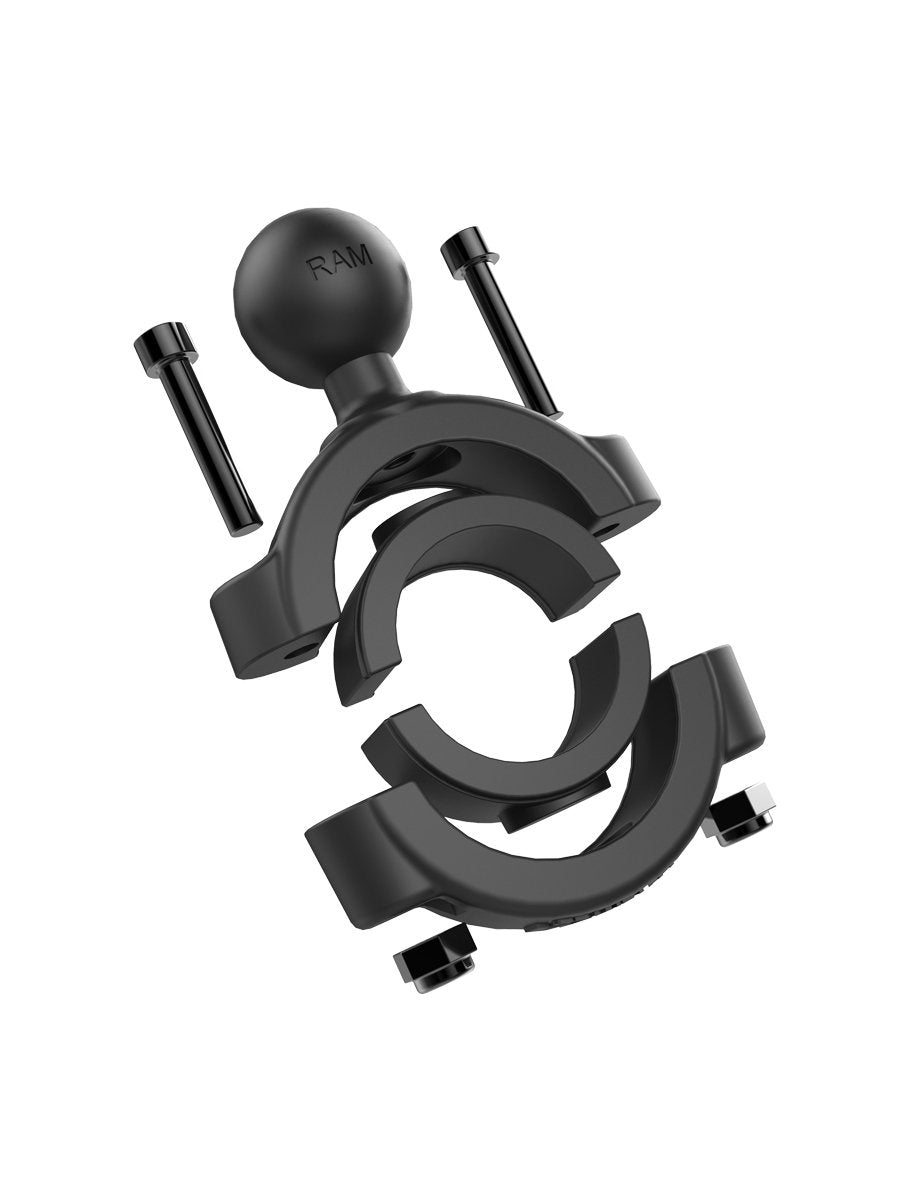

  HARDWARE INCLUDED

  (2) #10-24 x 1" Socket Head Cap Screws
  (2) #10-24 Nylock Nuts
  (2) 1.12" Split Reducing Bushings
  (2) 1.27" Split Reducing Bushings
  (1) 5/32" Hex Key Wrench
  (1) 127mm x 17mm Rubber Adhesive Strip

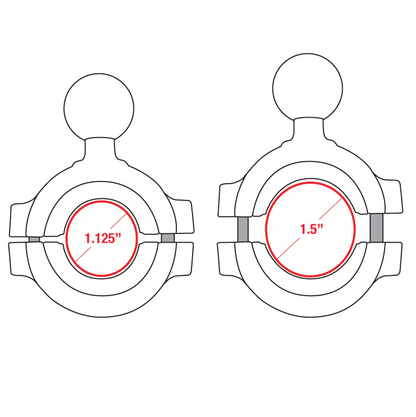

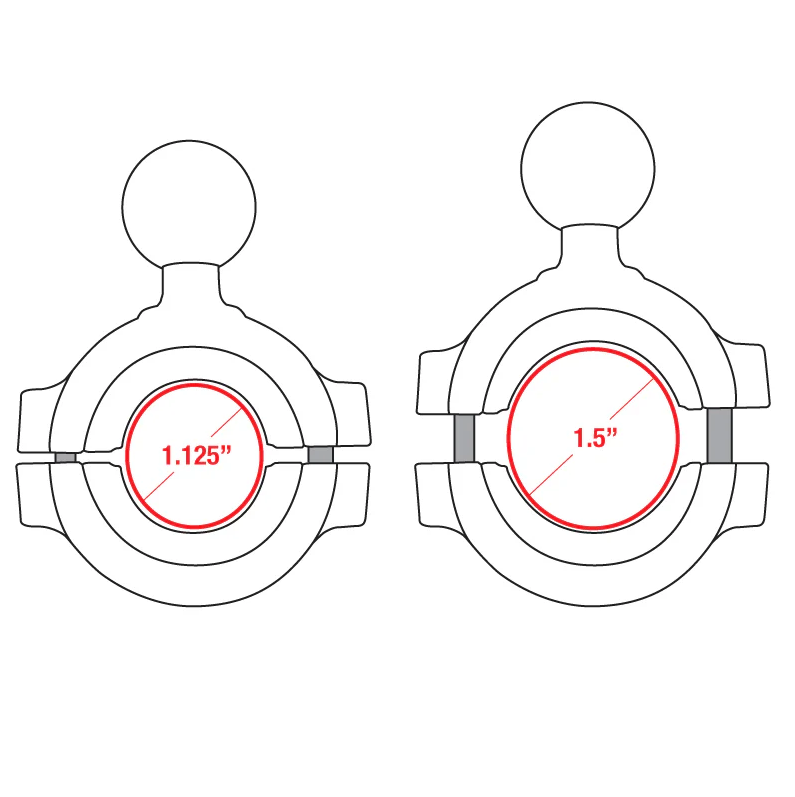

  CLAMP RANGE

  1.125" - 1.5" diameter

  BALL/SOCKET SIZE

  B Size (1")

  WEIGHT CAPACITY

  Standard Use: 2 lbs
  Heavy-Duty Use: 1 lb


  MATERIALS

  Marine-grade aluminum

  PACKAGING TYPE

  Poly Bag

  WEIGHT

  0.5 lbs.

FEATURES
