PRODUCT INFORMATION
OVERVIEW

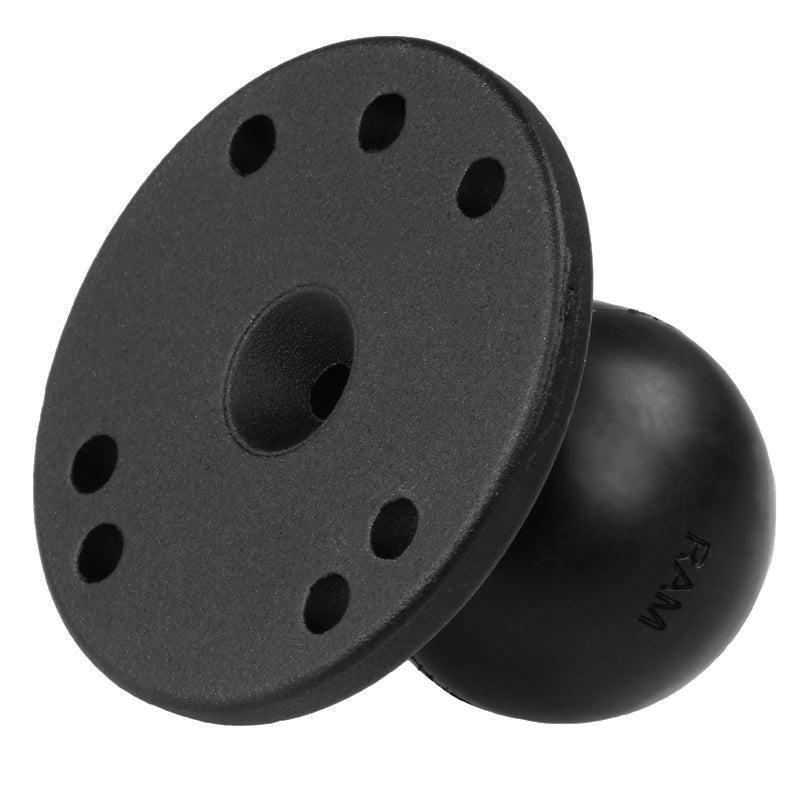

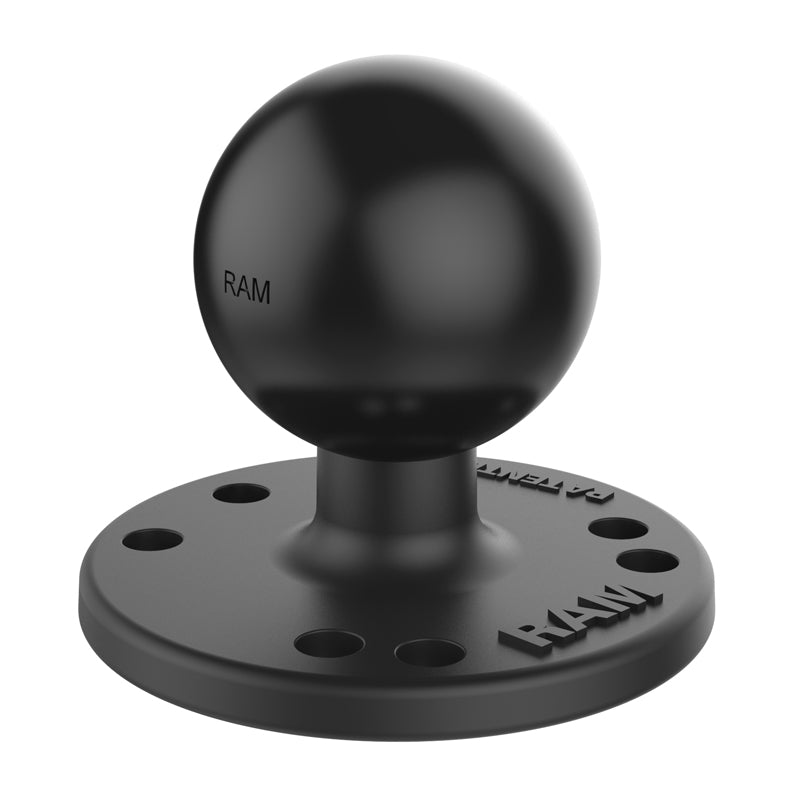

The RAM-202U consists of a 1.5" C size rubber ball connected to a 2.5" diameter round plate. This mounting component includes pre-drilled holes using the universal AMPS hole pattern.

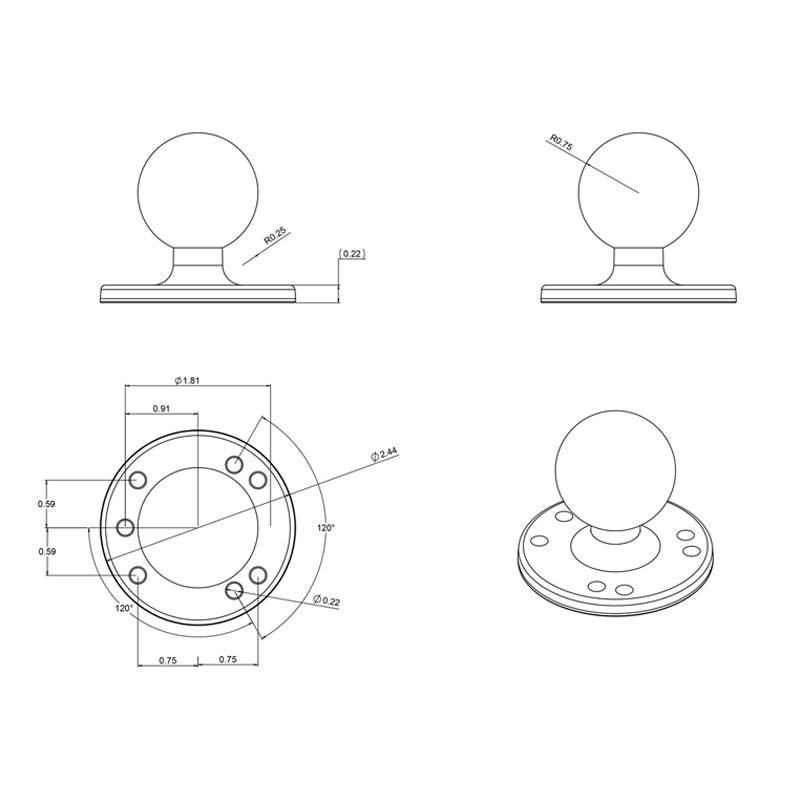

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
PLATE SIZE
2.5" DiameterBALL/SOCKET SIZE
C Size (1.5")WEIGHT CAPACITY
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
MATERIALS
Marine-grade aluminumPACKAGING TYPE
Poly BagWEIGHT
0.22 lbs.
