RAM Mounts - Large Marine Electronics Ball Adapter - D Size (RAM-D-111BU)
RAM Mounts - Large Marine Electronics Ball Adapter - D Size (RAM-D-111BU)
Regular price
$104.95
Regular price
Sale price
$104.95
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
OVERVIEW

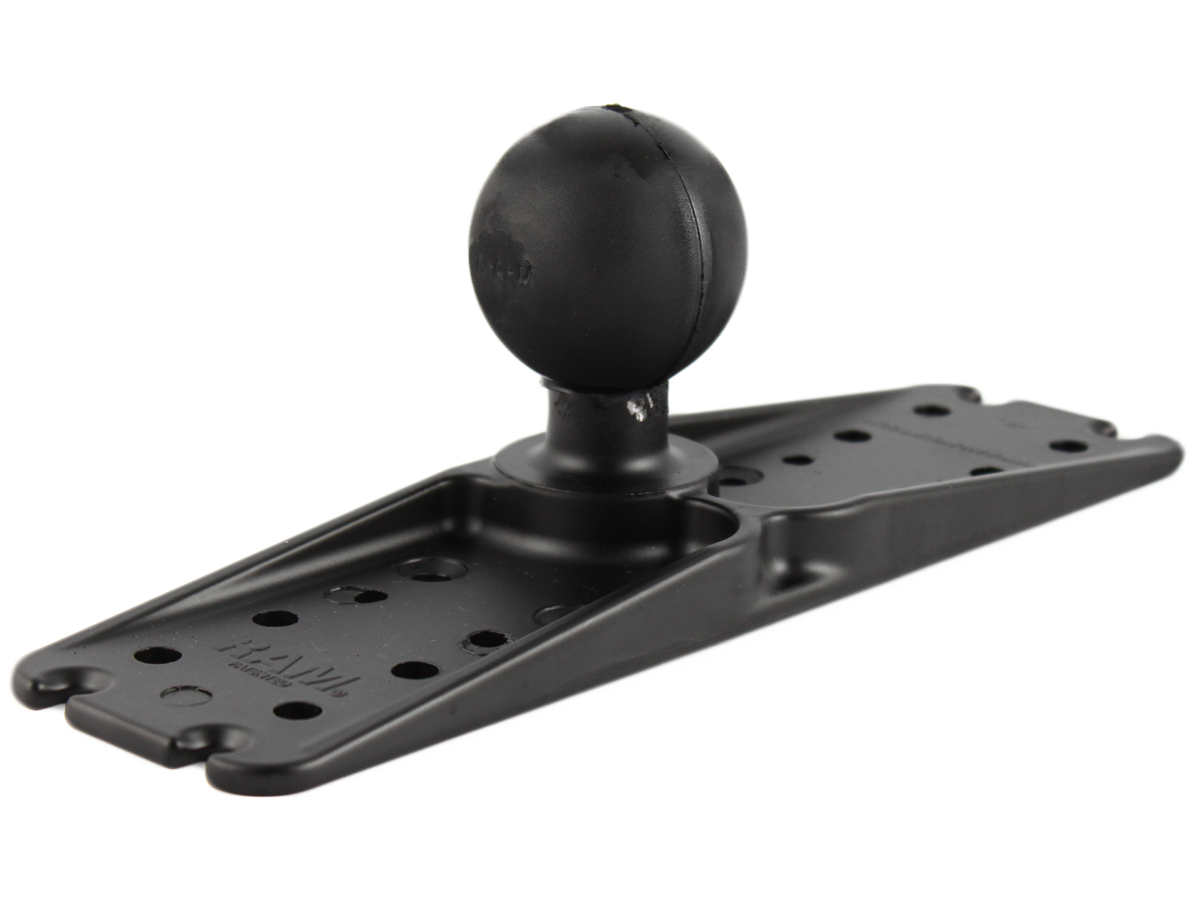

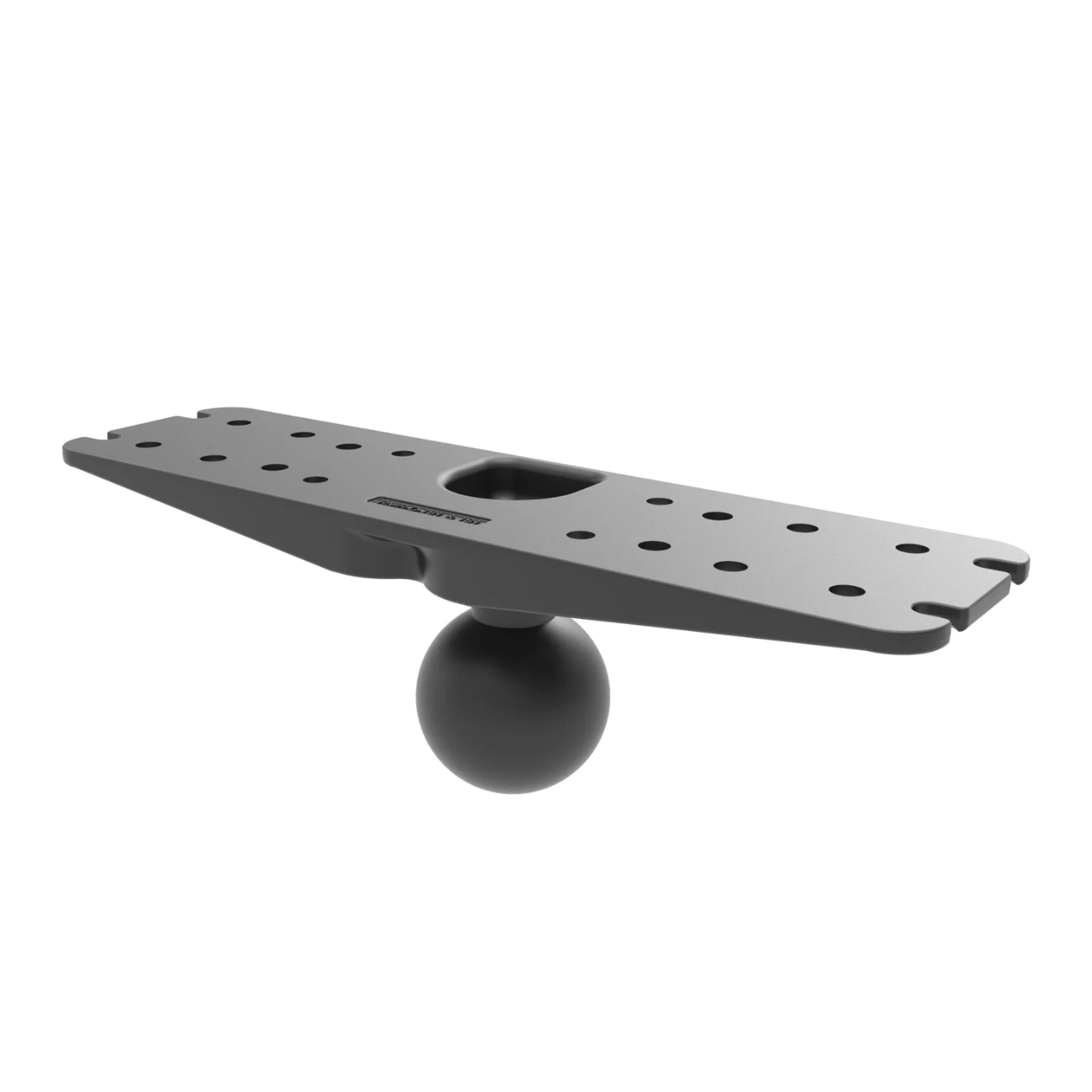

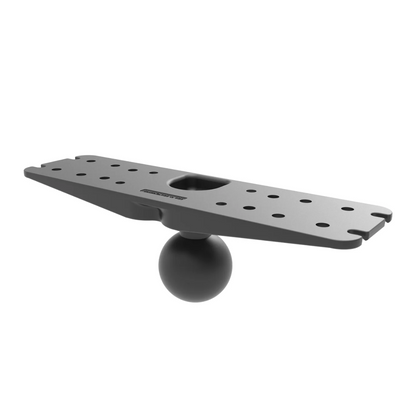

The RAM-D-111BU, universal mounting plate, consists of a 2.25" diameter rubber ball, connected at right angles to a flat 11 x 3" rectangular plate. The plate contains different combinations of pre-drilled holes which will match up to many electronic devices. Included are four shoulder washers that allow smaller hardware to fit properly in the large holes of this plate.
HARDWARE INCLUDED
(4) .312" x .187" Shoulder Washers
HOLE PATTERN

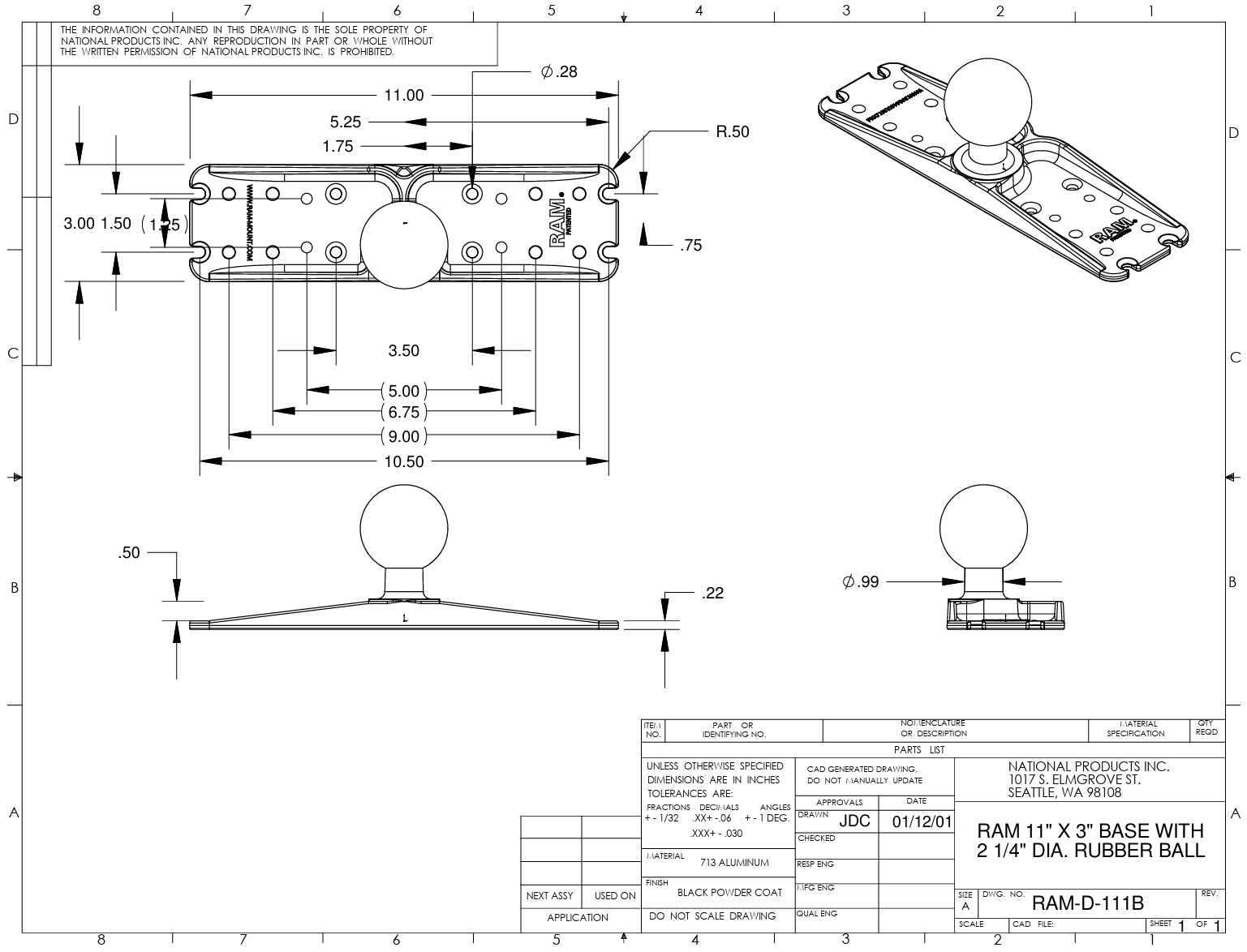

See Drawing
PLATE SIZE
3" x 11"
BALL/SOCKET SIZE
D Size (2.25")
WEIGHT CAPACITY
6 lbs
MATERIALS
Marine-grade aluminum
WEIGHT
1.3 lbs.
ADDITIONAL INFORMATION
The 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
GARMIN COMPATIBILITY
- ECHOMAP Ultra 122sv
- ECHOMAP Ultra 126sv
- GPSMAP 1222/xsv Touch
- GPSMAP 1242xsv/Touch
- Fishfinders and GPS Chartplotters
