RAM Mounts - Handlebar U-Bolt Double Ball Mount with Diamond Plate - B Size - Medium Arm (RAM-B-149ZU)

RAM Mounts - Handlebar U-Bolt Double Ball Mount with Diamond Plate - B Size - Medium Arm (RAM-B-149ZU)

Regular price $99.95
Regular price Sale price $99.95
Sale Sold out
Shipping calculated at checkout.

OVERVIEW

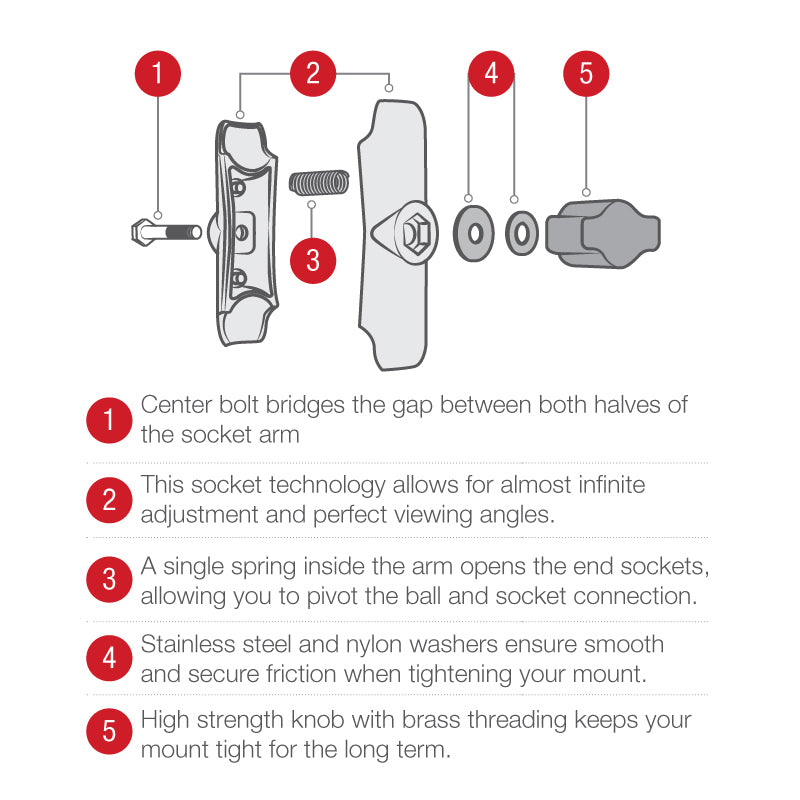

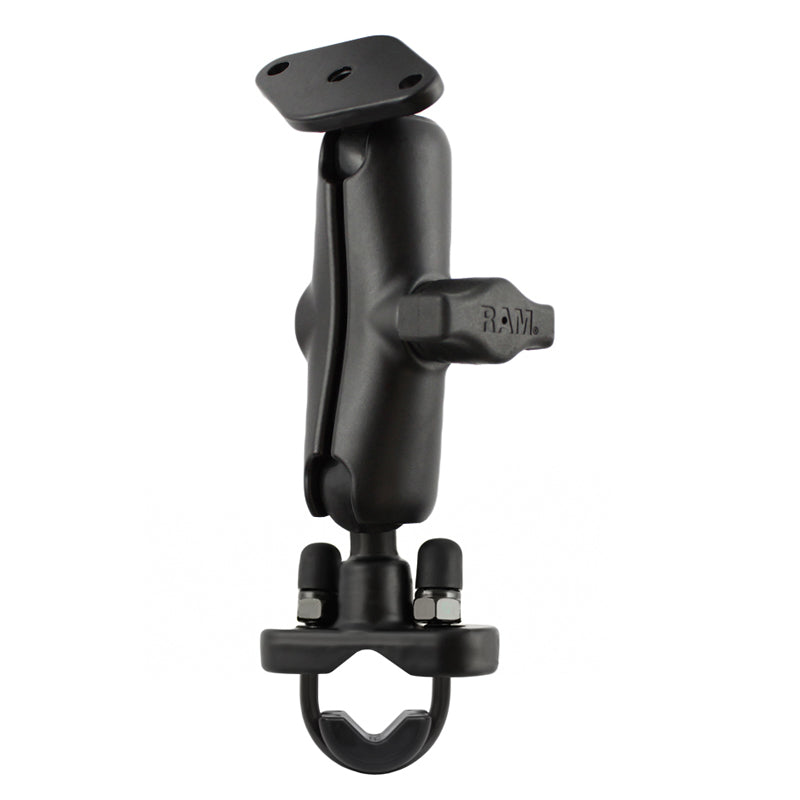

The RAM-B-149ZU consists of a zinc-coated U-bolt base, double socket arm, and diamond adapter base. The diamond adapter base has a hole pattern that matches the industry standard AMPS hole pattern and will connect to a large variety of RAM components. Included is hardware that will accommodate rails from .5" to 1.25" in diameter. A composite rail adapter can narrow the rail to a minimum width of 0.5”. Also included is a B size medium length double socket arm featuring adjustment points at both ends, allowing for near-infinite adjustability.

FEATURES

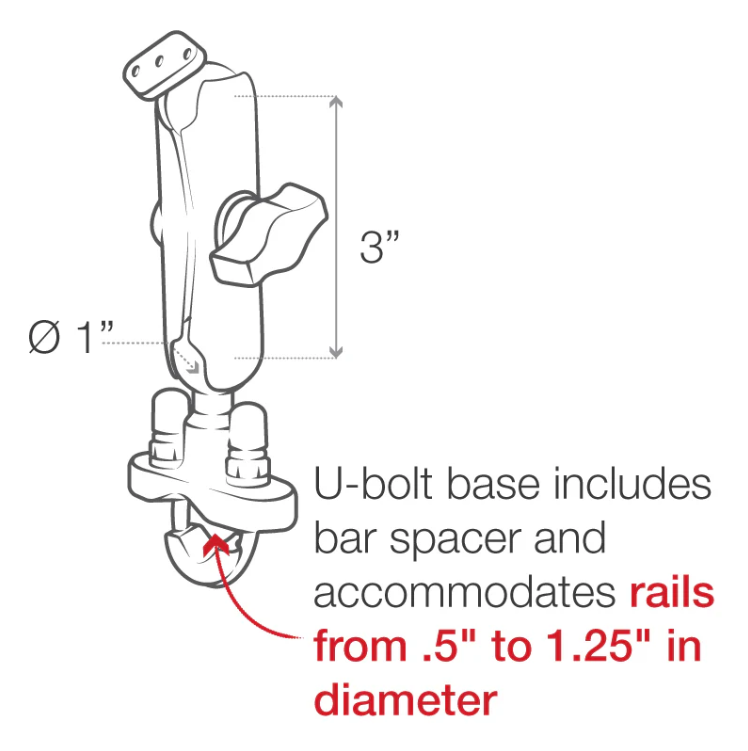

  • Includes zinc-coated U-bolt base that accommodates rails from .5" to 1.25" in diameter, medium length B size RAM double socket arm, and diamond adapter ball base for connecting to a wide variety of device holders

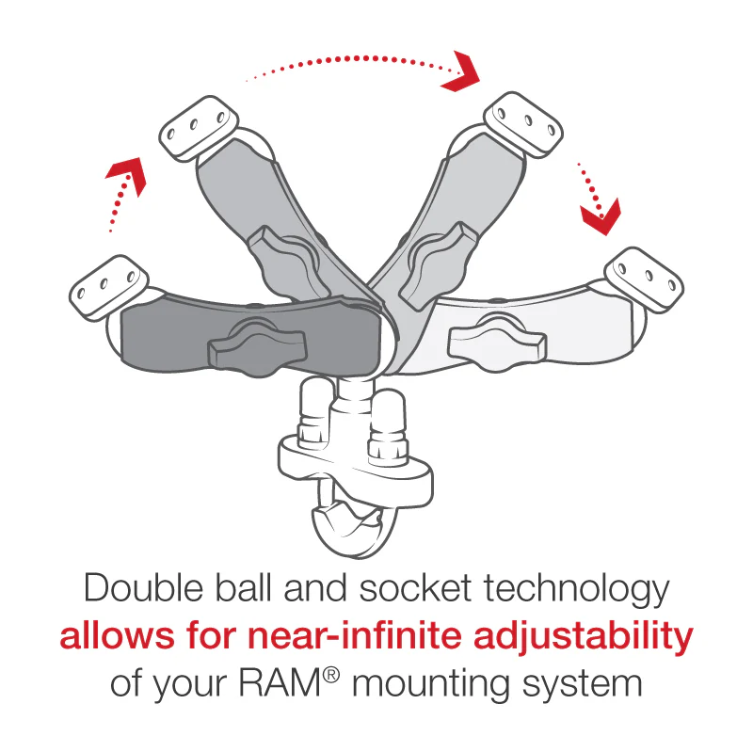

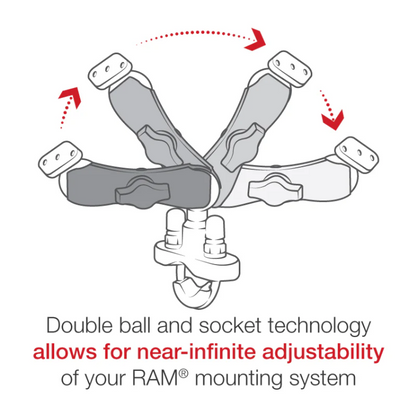

  • RAM Mounts ball and socket technology allows for near-infinite adjustability on bicycle and motorcycle handlebars
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty



HARDWARE INCLUDED

(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE

.5" - 1.25" diameter

SOCKET-TO-SOCKET LENGTH

3"

HOLE PATTERN

2-Hole AMPS: 1.912"

PLATE SIZE

2.43" x 1.31"

BALL/SOCKET SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum

WEIGHT

0.63 lbs.
