RAM® Double Ball Mount with Two Round Plates (RAM-101U)

RAM® Double Ball Mount with Two Round Plates (RAM-101U)

$84.99
$84.99
Sale Sold out
Shipping calculated at checkout.

  • PRODUCT INFORMATION

    OVERVIEW

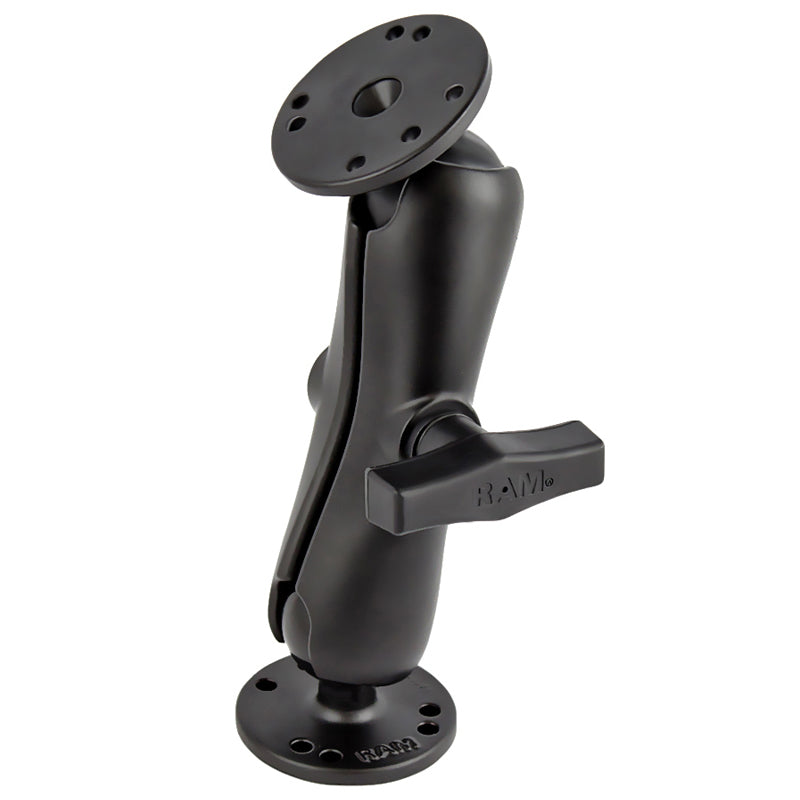

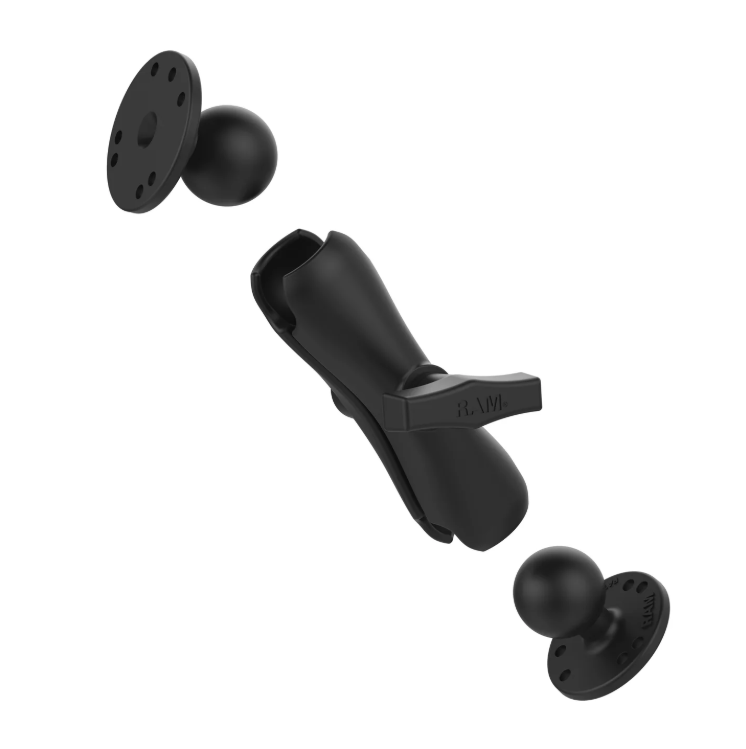

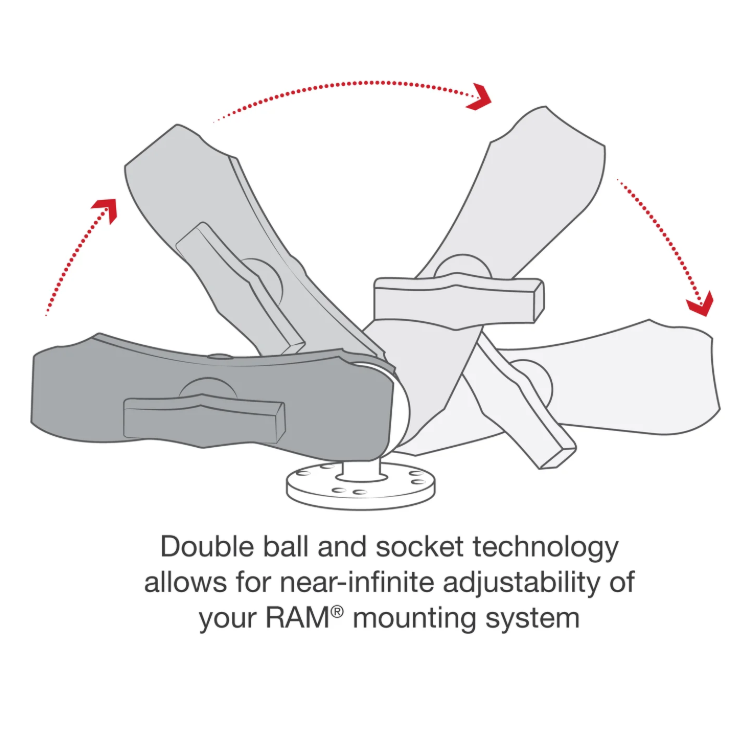

    The RAM-101U consists of a medium length C size 1.5" double socket arm and two 2.5" diameter round ball bases that contain the universal AMPS hole pattern. The ball and socket system provides shock and vibration damping, and allows for near-infinite adjustability to achieve an ideal viewing and operating angle of your device.

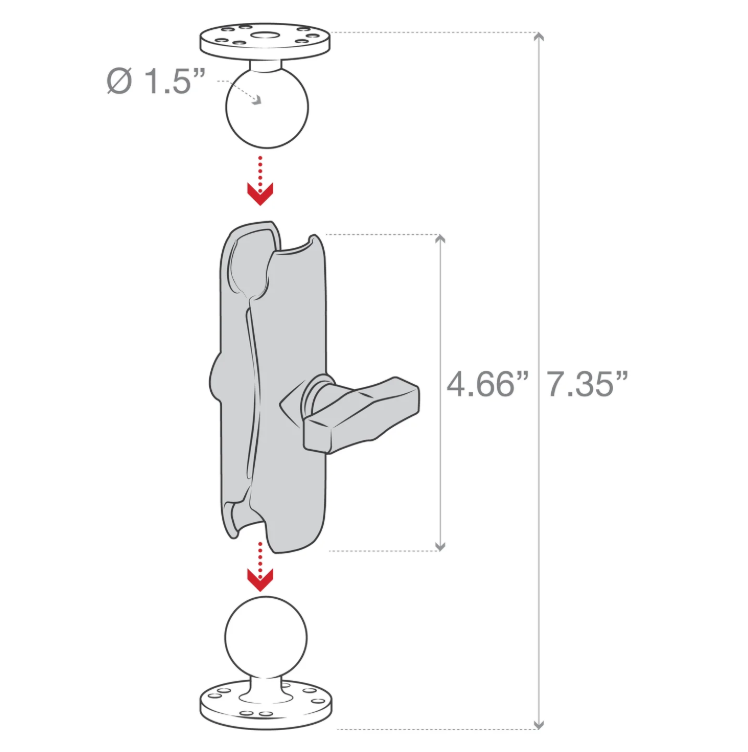

    PRODUCT DIMENSIONS

    Overall Height: 7.35"

    SOCKET-TO-SOCKET LENGTH

    4.66"

    HOLE PATTERN

    4-Hole AMPS: 1.181" x 1.496"
    3-Hole 120-Degree: 1.812" Diameter

    PLATE SIZE

    2.5" Diameter

    BALL/SOCKET SIZE

    C Size (1.5")

    WEIGHT CAPACITY

    Standard Use: 4 lbs
    Heavy-Duty Use: 3 lbs

    MATERIALS

    Marine-grade aluminum

    PACKAGING TYPE

    Poly Bag

    WEIGHT

    1.1 lbs.
