RAM Mounts - Ball Adapter with AMPS Plate - B Size (RAM-B-347U)
RAM Mounts - Ball Adapter with AMPS Plate - B Size (RAM-B-347U)
Regular price
$15.99
Regular price
Sale price
$15.99
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
OVERVIEW

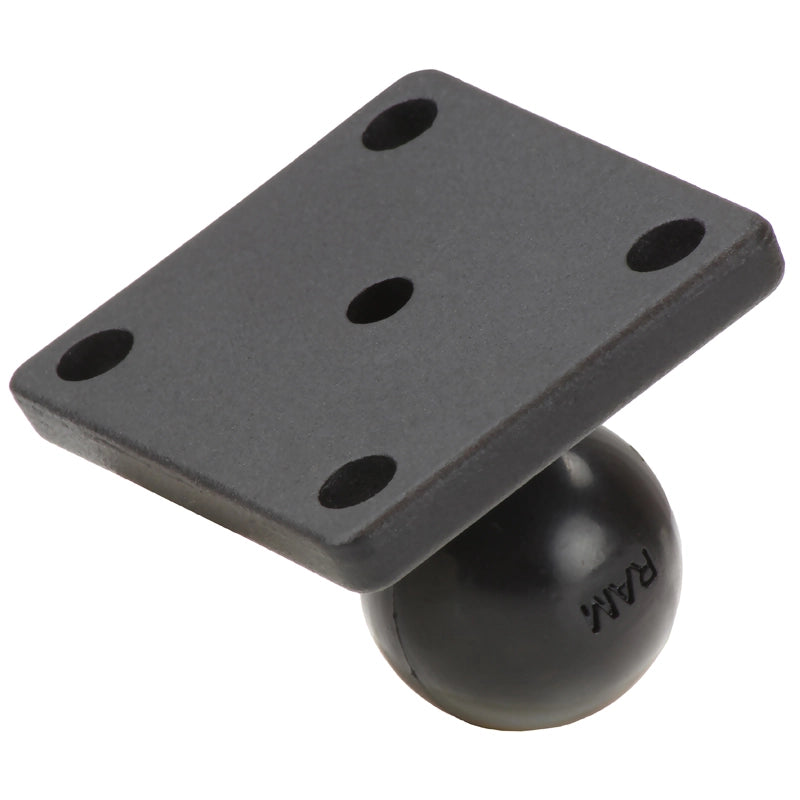

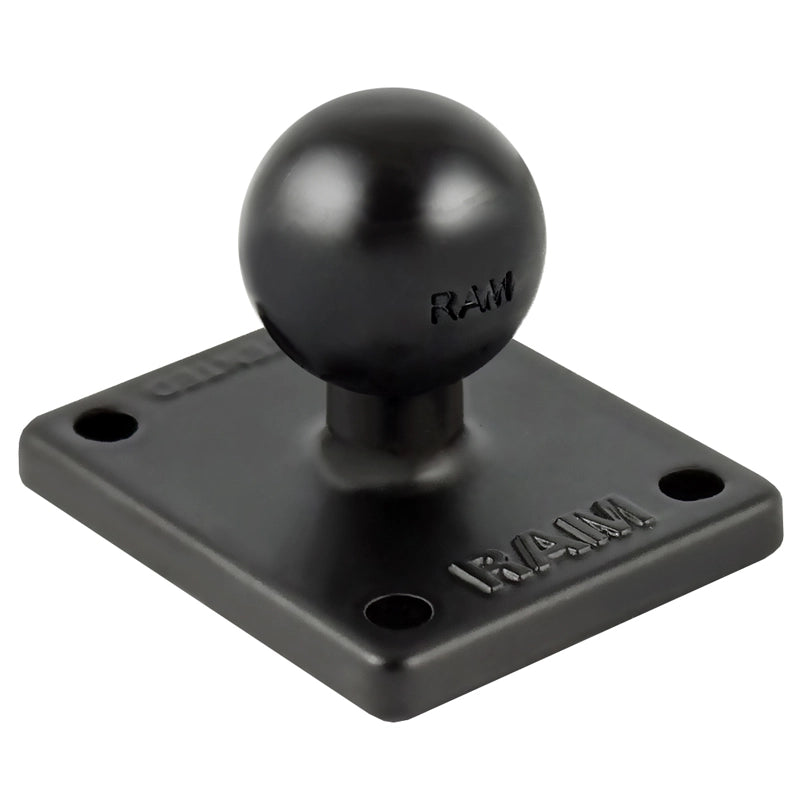

The RAM-B-347U base consists of a B size 1" diameter rubber ball connected to a 2" x 1.7" square base. The base has four pre-drilled holes at each corner, using the universal AMPS hole pattern.
FEATURES
- 2" x 1.7" square ball base features industry-standard AMPS hole pattern with four pre-drilled holes at each corner
- Included B size 1" RAM rubber ball allows for connection to any B size RAM double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
- Backed by a lifetime warranty

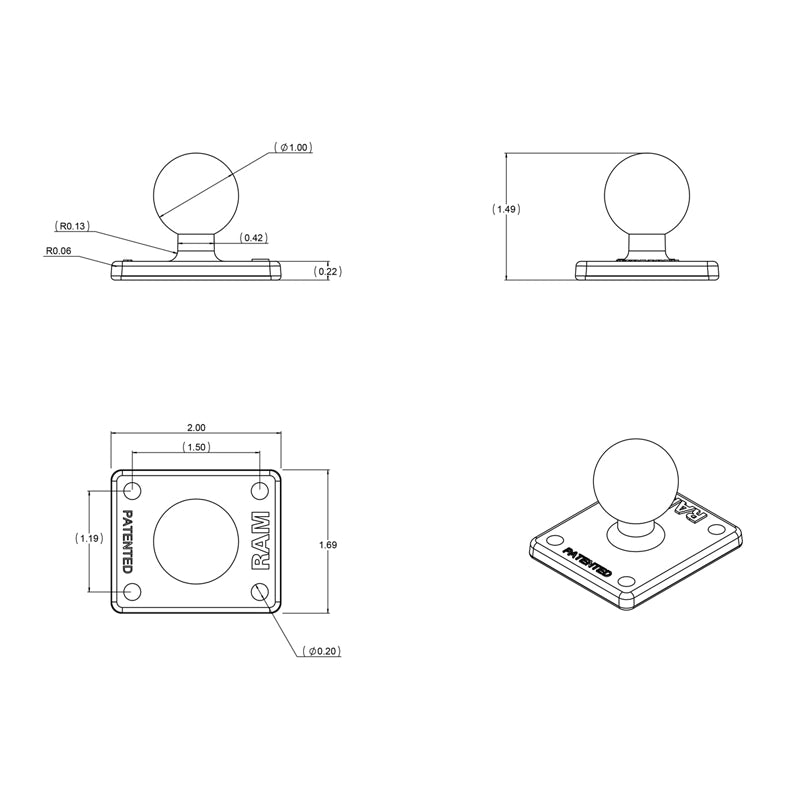

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
THREAD PITCH
1/4"-20
PLATE SIZE
2" X 1.7"
BALL SIZE
B Size (1")
WEIGHT CAPACITY
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
Heavy-Duty Use: 1 lb
MATERIALS
Marine-grade aluminum
WEIGHT
0.15 lbs.
GARMIN COMPATABILITY
- dezl OTR1000
- GPSMAP 276Cx
- Tread
- zumo 390LM
- zumo 396 LMT-S
- zumo 400
- zumo 450
- zumo 500
- zumo 550
- zumo 590
- zumo 595LM
- zumo 660
- zumo 665
- zumo XT
- zumo XT2
