Description

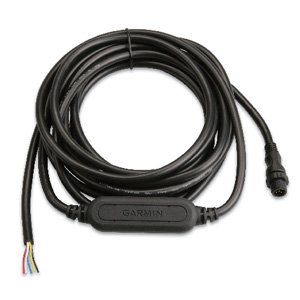

With the GET 10 Engine Tilt/Trim Analog Adapter aboard your vessel, you can give new life to your old gauges by making the transition from analog to digital. This simple-to-install adapter takes the data generated by traditional analog gauges and converts the data into a NMEA 2000® signal so you can create or expand your network without replacing all of the equipment on your boat.

Connect to Your Network

With the Garmin GET 10 adapter, you can convert analog information provided via the engine-tilt sensor (not included) on your boat to your NMEA 2000 network. The GET 10 allows you to observe engine-tilt information on compatible Garmin display devices connected to your NMEA 2000 network.

Upgrade With Ease

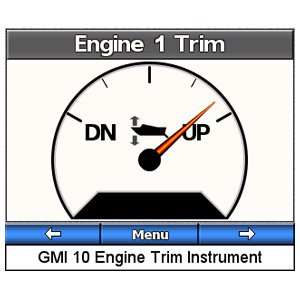

The NMEA 2000 analog adapters from Garmin are easy to add to any existing marine network. Once installed, the data from the adapters can be viewed via the GMI™ 10 Marine Instrument Display and other compatible Garmin devices. This easy-to-use set-up will help you bring your older dashboard into the digital age.

Specifications

Unit dimensions, WxHxL: 31/32" x 43/64" x 3 3/32" (24.7 x 17.0 x 78.6 mm)

Weight: 12.85 oz. (365 g)

Total cable length: 16 ft. (4.9 m)

Temperature range: From 5°F to 158°F (from -15°C to 70°C)

Compass Safe Distance: 2 in. (5 cm)

Power Input Source: 9–16 Vdc from the NMEA 2000 bus

NMEA 2000 Power Usage: 1 W max

NMEA 2000 Load Equivalency Number (LEN): 2 (100 mA)

Compatibility
