RAM Mounts - Marine Electronics Plate with Ball Adapter - D Size (RAM-D-115BU)
RAM Mounts - Marine Electronics Plate with Ball Adapter - D Size (RAM-D-115BU)
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
OVERVIEW

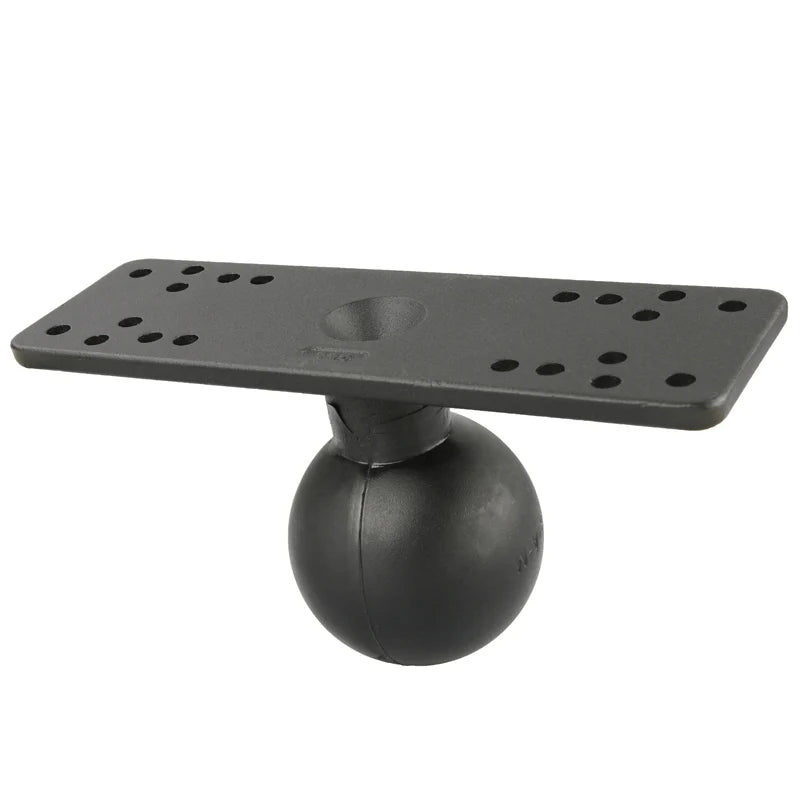

The RAM-D-115BU, universal mounting plate, consists of a 2.25" diameter rubber ball, connected at right angles to a flat 6.25" x 2" rectangular plate. The plate contains different combinations of pre-drilled holes which will match up to many electronic devices.
FEATURES

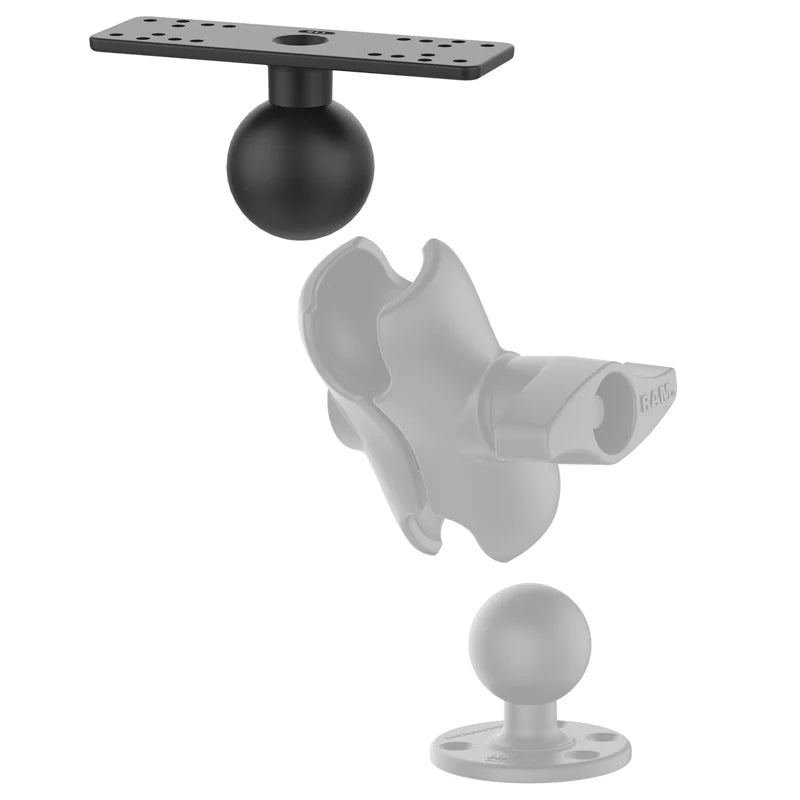

- D size ball adapter for 9"-12" fishfinder gimbal brackets
- RAMĀ Mounts ball and socket technology allows for near-infinite adjustability
- Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
- Backed by a lifetime warranty
HOLE PATTERN

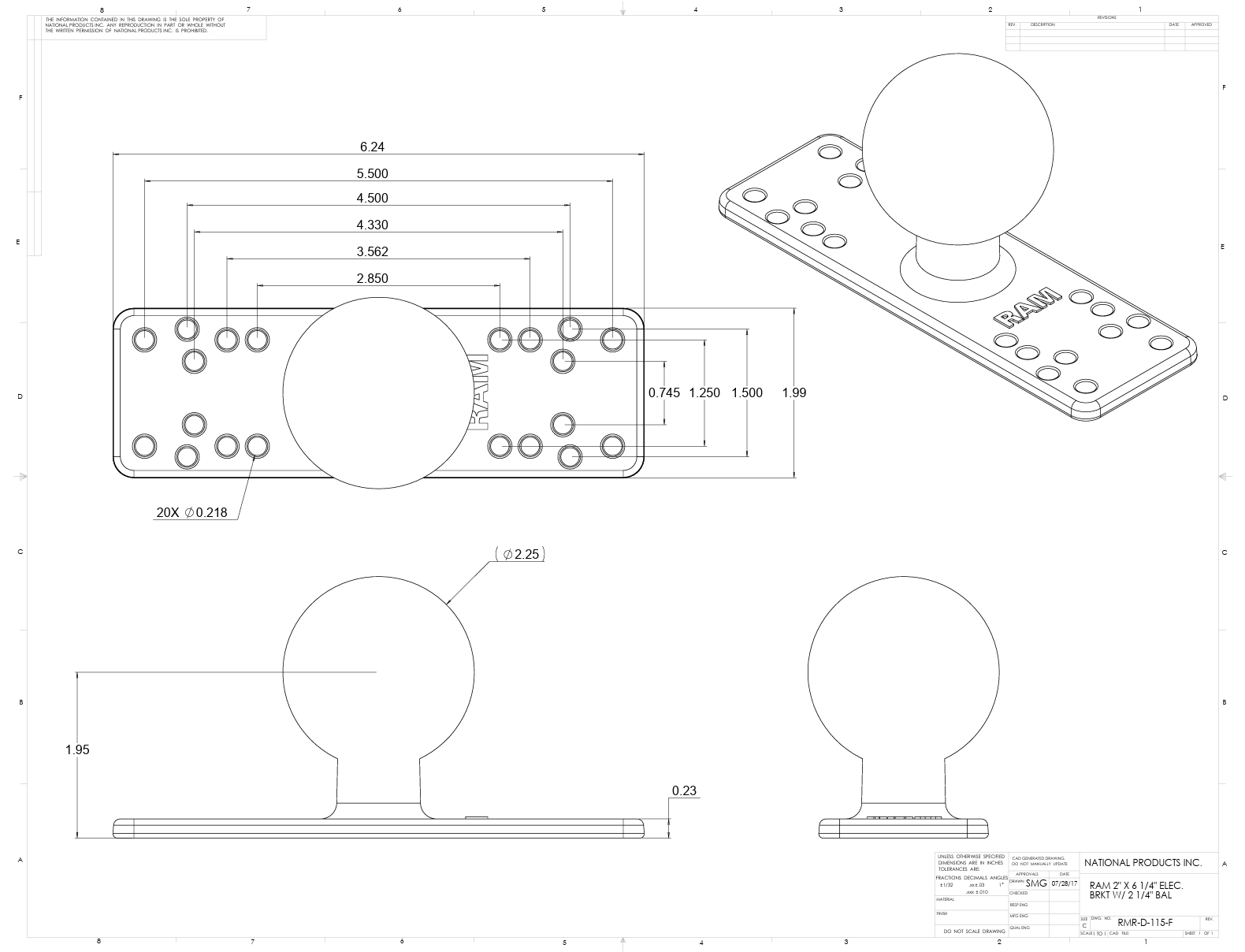

See Drawing
PLATE SIZE
6.25" x 2"
BALL SIZE
D Size (2.25")
WEIGHT CAPACITY
Standard Use: 6 lbs
Heavy-Duty Use: 5 lbs
MATERIALS
Marine-grade aluminum
WEIGHT
0.66 lb
ADDITIONAL INFORMATION
The 6.25" x 2" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
GARMIN COMPATIBILITY
- GPSMAP 8410
- GPSMAP 8410xsv
- GPSMAP 8412
- GPSMAP 8412xsv
- GPSMAP 8416
- GPSMAP 8416xsv
- GPSMAP 8610
- GPSMAP 8610xsv
- GPSMAP 8612
- GPSMAP 8612xsv
- GPSMAP 8616
- GPSMAP 8616xsv
- GPSMAP 922
- GPSMAP 922xs
- GPSMAP 923
- GPSMAP 923xsv
- GPSMAP 942
- GPSMAP 942xs
- GPSMAP 943
- GPSMAP 943xsv
- GPSMAP 1223
- GPSMAP 1223xsv
- GPSMAP 1243
- GPSMAP 1243xsv
- echoMAP Chirp 72-95 Series
- ECHOMAP Plus 72-97 Series
- ECHOMAP UHD 62-95 Series
- ECHOMAP UHD2 9"
- ECHOMAP Ultra 102sv
- ECHOMAP Ultra 106sv
- ECHOMAP Ultra 2 10"
- ECHOMAP Ultra 2 12"
- Striker Plus 9sv
- Striker Vivid 9sv
- Fishfinders and GPS Chartplotters
