RAM Mounts - Horizontal Swing Arm with Double Ball Mount - C Size (RAM-109H-2U)
RAM Mounts - Horizontal Swing Arm with Double Ball Mount - C Size (RAM-109H-2U)
Regular price
$234.99
Regular price
Sale price
$234.99
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
OVERVIEW

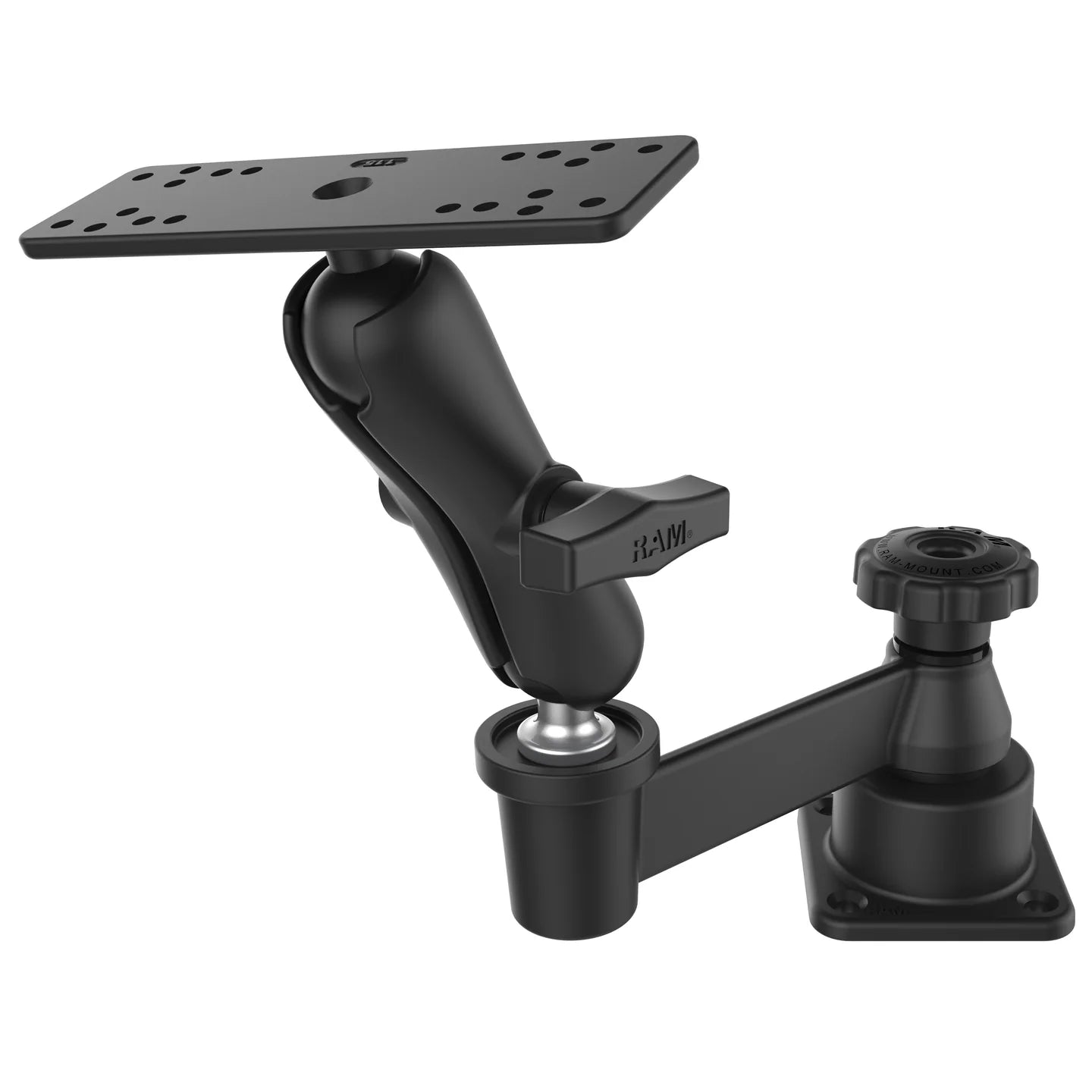

The RAM single swing and socket arm mount includes a 6" straight swing arm mounted on a horizontal surface mounting base. At the end of the mount is a rectangular 6.25" x 2" top base. The bolt pivoting point of the mount allows a 360 degree rotation.
PRODUCT DIMENSIONS
Overall Height: 6.76"
Total Swing Arm Length: 6"
SOCKET TO SOCKET LENGTH
4.66"
HOLE PATTERN

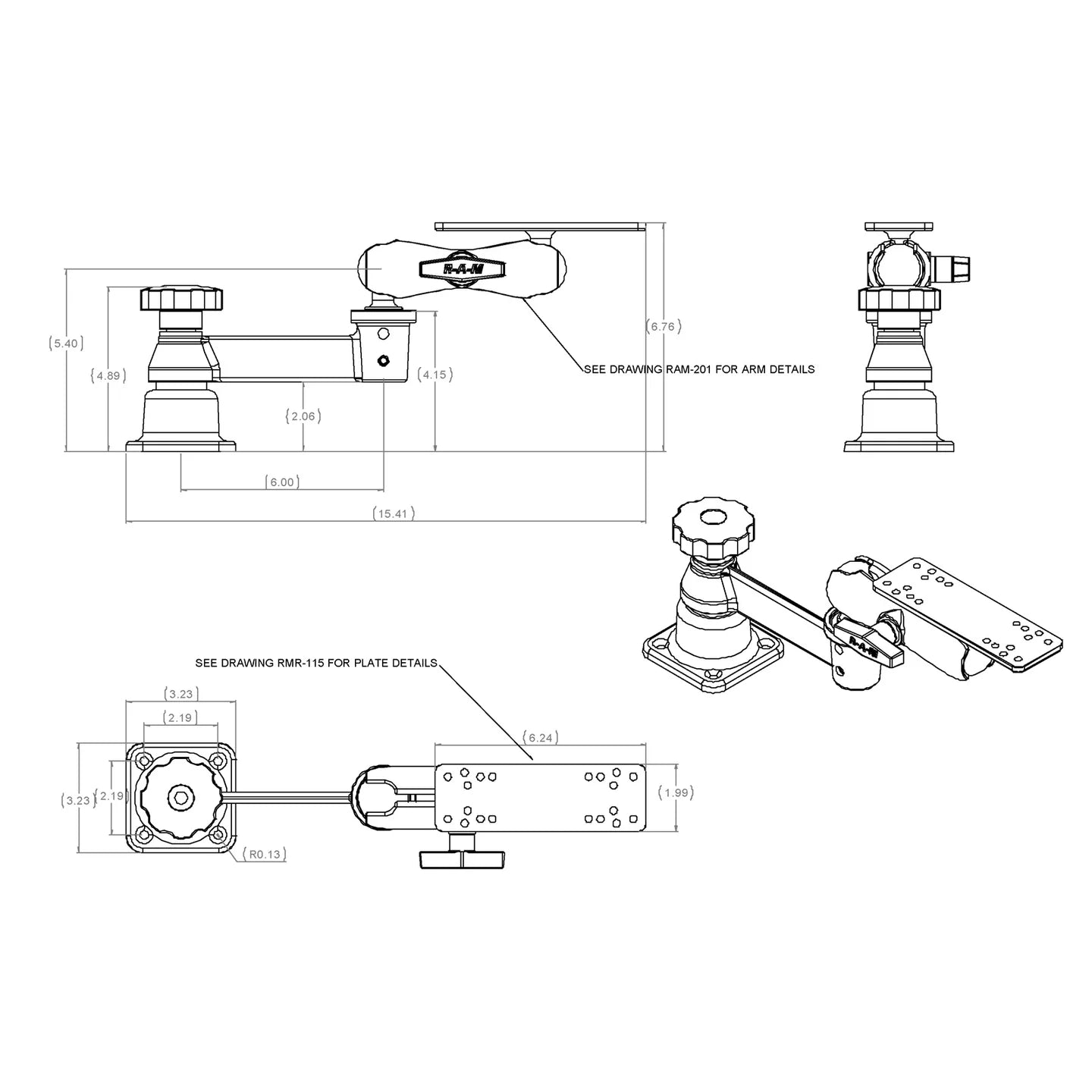

See Drawing
BALL SIZE
C Size (1.5")
WEIGHT CAPACITY
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
MATERIALS
Marine-grade aluminum
WEIGHT
2.74 lb
KIT COMPONENTS
- RAM Mounts - Horizontal 6" Swing Arm Mount with Ball - C Size (RAM-109H-2BU)
- RAM Mounts - Double Socket Arm - C Size - Medium (RAM-201U)
ADDITIONAL INFORMATION
The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
GARMIN COMPIBILITY
- ECHOMAP Plus 72cv
- ECHOMAP Plus 73cv
- ECHOMAP Plus 74cv
- ECHOMAP Plus 75cv
- ECHOMAP Plus 77cv
- ECHOMAP UHD2 5"
- ECHOMAP UHD2 7"
- GPSMAP 722
- GPSMAP 722xs
- GPSMAP 723
- GPSMAP 723xsv
- GPSMAP 742
- GPSMAP 742xs
- GPSMAP 743
- GPSMAP 743xsv
- Striker Plus 5cv
- Striker Vivid 5cv
- Striker Plus 7cv
- Striker Plus 7sv
- Striker Vivid 5cv
- Striker Vivid 7cv
- Striker Vivid 7sv
- Fishfinders and GPS Chartplotters
