Garmin

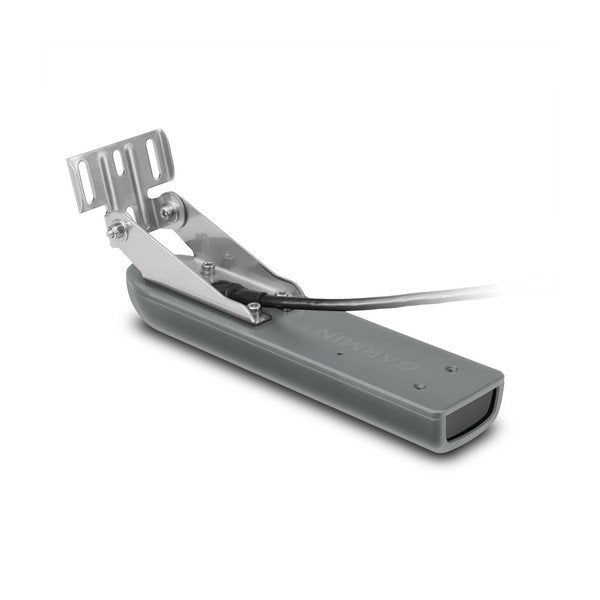

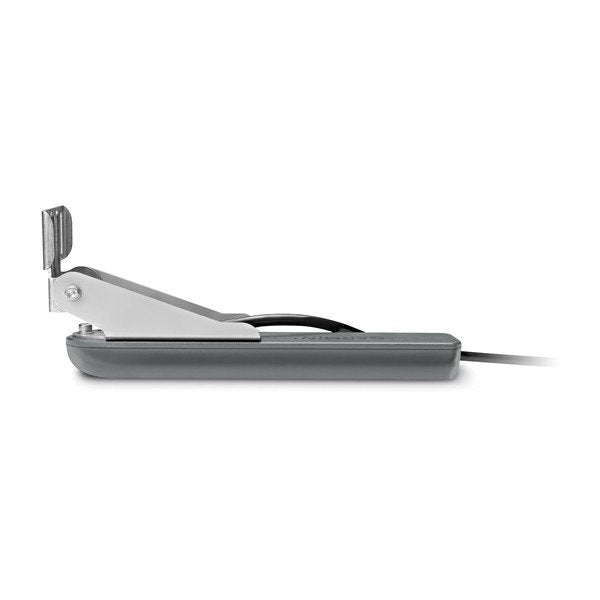

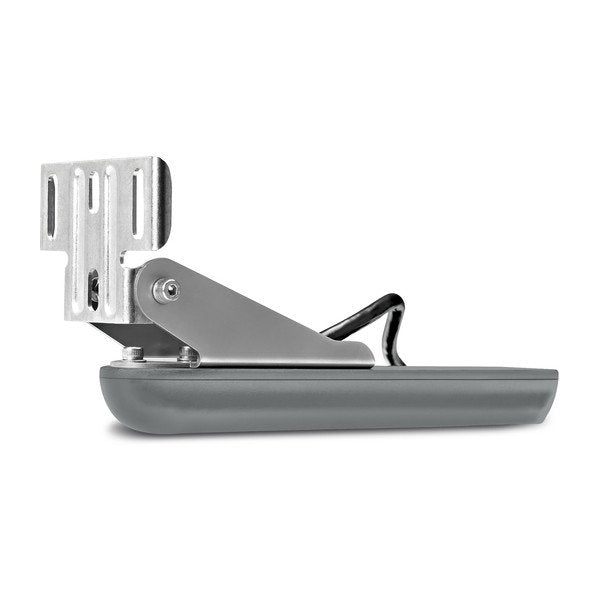

Garmin GT40-TM (010-01963-00)

  • Sale
  • $299.99
  • Regular price $349.99
  • 1 available
Shipping calculated at checkout.


OVERVIEW

Perfect for the shallow water fisherman who want traditional sonar, CHIRP ClearVü and CHIRP SideVü scanning sonar, this transom mounted transducer consistently displays fish arches as well as clear pictures of objects, structure and fish that pass below and to each side of your boat.

The CHIRP ClearVü/SideVü elements have a power rating of 500 W per element (1,500 W total) and operating frequencies of 455/800 kHz. The traditional sonar has a power rating of 500 W and operating frequencies of 77/200 kHz. It also includes a built-in fast response temperature sensor.

GT40-TM icludes a 12-pin transducer with mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.

General Specs

FREQUENCY Traditional (77/200 kHz); ClearVü/SideVü CHIRP 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz)
POWER Traditional 500 W; ClearVü/SideVü 500 W
BEAMWIDTH Traditional: 45°/15°
ClearVü/SideVü: 1.1°x53° @ 455 kHz and 0.7°x30° @ 800 kHZ
MAXIMUM DEPTH Traditional: 1,900 ft. freshwater & 900 ft. saltwater; ClearVü: 750 ft.; SideVü: 500 ft.
DEPTH/SPEED/TEMPERATURE Depth and Temperature
NUMBER OF PINS 12-pin
CABLE LENGTH 30 ft.
SUPPORTED DEADRISE/TRANSOM ANGLES 0°-70° degree transom

Compatible Devices
